What happened
NVIDIA published a technical description of Spectrum-X Ethernet, a networking architecture designed for distributed AI training clusters. The company says it combines hardware-accelerated adaptive routing in switches, congestion control coordinated with SuperNICs, and plane-aware load balancing to address synchronized traffic, congestion and failures in large AI fabrics.
In an Aug. 24, 2026 technical blog post, NVIDIA presents Spectrum-X Ethernet as a networking architecture for what it calls “giga-scale” AI factories. The central claim is that conventional Ethernet designs are optimized for many relatively independent data-center flows, while distributed AI training generates fewer, much larger and highly synchronized flows. Operations such as All-Reduce, All-Gather and All-to-All can complete only when their slowest communication path finishes, so one congested or failed path can leave otherwise available compute waiting. The source argues that this makes networking a first-order constraint for large AI systems.
The blog identifies three mechanisms as the core of Spectrum-X Ethernet. In-switch adaptive routing uses queue information to steer packets toward less-congested physical ports instead of relying only on static flow hashing. A targeted congestion-control system combines switch-generated congestion marks with round-trip-time measurements at the SuperNIC, with the stated goal of responding to sustained endpoint congestion without overreacting to short-lived bursts. A NIC-based Plane Load Balancer distributes traffic across independent network planes using local queue information and per-plane congestion telemetry. NVIDIA says these functions are implemented in hardware so that they can react on microsecond or sub-microsecond timescales.
The post then describes Spectrum-X Multiplane, which divides a host’s aggregate network capacity among multiple physically independent planes. NVIDIA gives an example of an 800-gigabit-per-second SuperNIC connected through four 200-gigabit-per-second planes, with passive optical devices such as shuffle-boxes or trunk cables connecting hosts to those planes. The company says a shallow two-tier topology can support more than 128,000 endpoints and that a three-tier design can reach up to 16 million endpoints. These figures are architectural claims in the source; the post does not provide a deployment case study establishing that every configuration has been built or operated at those scales.

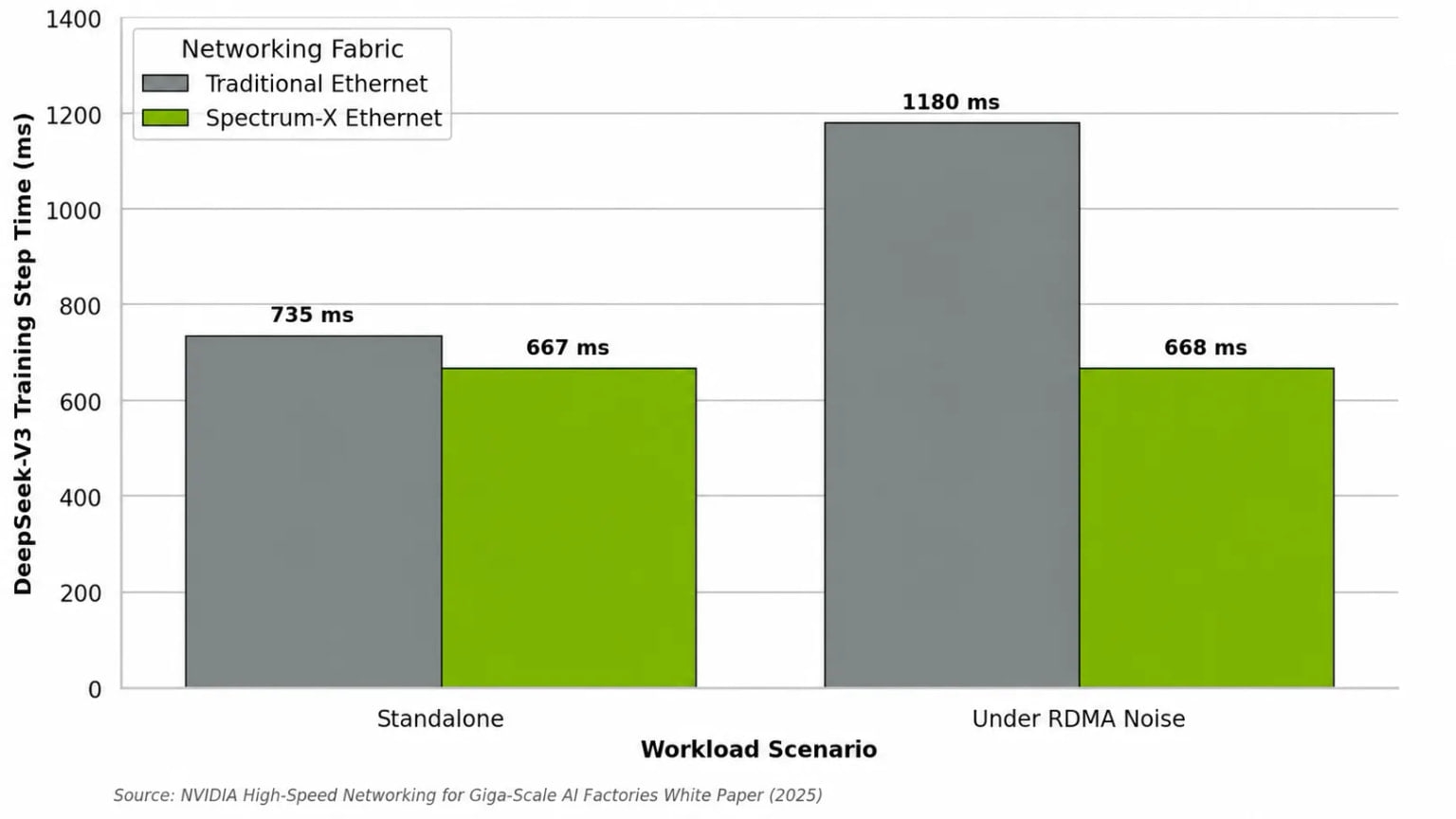

NVIDIA reports several results from production-grade clusters and high-fidelity simulations. In a DeepSeek-V3 training simulation with background RDMA noise, the company says standard Ethernet step time rose from 735 milliseconds to 1.18 seconds, while Spectrum-X remained at 668 milliseconds. It reports 98% of theoretical line rate across GPU pairs in a worst-case bisection test, compared with some traditional-Ethernet paths falling to 25 gigabits per second. It also reports 99th-percentile tail latency of 8–9 microseconds for Spectrum-X versus 22 microseconds for traditional Ethernet at 75% load, and host-link failover of 2.68 milliseconds versus 1.08 seconds for a software load balancer. The source does not disclose full test configurations, hardware lists, workload traces or independently reproduced results.
Read the primary source: developer.nvidia.com ↗
Why it matters
As AI training workloads spread across more GPUs, the network connecting those systems can determine how efficiently the cluster operates. If NVIDIA’s reported results generalize beyond its tests, the architecture could reduce idle GPU time, improve multi-tenant isolation and allow operators to absorb localized failures without slowing an entire training job.
The practical issue is synchronization. In a conventional web or enterprise workload, traffic can often take different paths without every operation waiting for the same collective to finish. Distributed model training is less forgiving: a delayed transfer between a subset of GPUs can hold up a broader synchronization step. NVIDIA’s argument is that adaptive routing and faster congestion responses can reduce these stragglers, improving the useful throughput of expensive accelerator clusters. That would affect the time and power required to train or serve large models, although the source does not translate its network measurements into a total cost or energy reduction for a complete AI system.
Multi-tenant isolation is another potentially important consequence. The blog says background traffic caused standard Ethernet’s simulated DeepSeek-V3 training step time to increase by roughly 60%, while Spectrum-X showed no degradation in the cited scenario. If representative, that could make it easier for operators to share large clusters among jobs without allowing one workload to consume the performance margin of another. The result is especially relevant to cloud providers and enterprise operators that need predictable service levels, but the source does not establish how the isolation behaves with different traffic mixes, scheduling policies or software stacks.
Resilience could also change the operational economics of AI infrastructure. NVIDIA says its Plane Load Balancer can mask a failed or degraded plane and redirect traffic to healthy planes, preserving the remaining capacity instead of forcing the whole fabric to perform at the speed of its weakest path. The company reports 1.2-times higher All-to-All bandwidth during a localized failure and near-proportional degradation under a 10% fabric-link failure scenario. Those claims describe network behavior, not guaranteed training completion times or uptime. They also depend on the architecture having sufficient alternate capacity and on failures being detectable and recoverable by the hardware path.
What to watch next
The source does not provide independent validation, deployment costs, customer references, availability details or comparisons across a broad range of hardware and workloads. Further evidence should show whether the reported gains persist in production environments, across vendors and under different failure, traffic and software conditions.
The most important next evidence is independent testing. The source is a NVIDIA technical blog and describes NVIDIA products, simulations and evaluations. It does not identify an external laboratory, customer, benchmark governance process or independently audited methodology. Useful follow-up would include complete test parameters, topology diagrams, packet sizes, software versions, workload duration, confidence intervals and results from operators that are not selling the networking system.
Deployment details remain unclear. The article names Spectrum-X Ethernet, Spectrum-X Multiplane, ConnectX SuperNICs and passive optical components, but it does not provide product pricing, procurement timelines, power requirements, compatibility limits or the operational expertise needed to build and maintain the topology. It also does not say which portions are available now, which are roadmap elements, or whether the stated endpoint scales refer to currently deployed systems or theoretical configurations.
Comparisons beyond the cited scenarios will determine the broader significance. Future evaluations should test other model architectures, collective patterns, cluster sizes, link speeds, multi-tenant schedules and failure combinations. They should also examine whether hardware-based routing introduces new debugging, interoperability or vendor-lock-in concerns, and whether performance gains remain after accounting for switches, SuperNICs, optical connectivity and software integration. Until that evidence is available, the post supports a significant vendor claim about AI infrastructure design, not a general finding that Spectrum-X will outperform every Ethernet alternative in production.
